Hose Reel

Spring Rewind Hose Reels

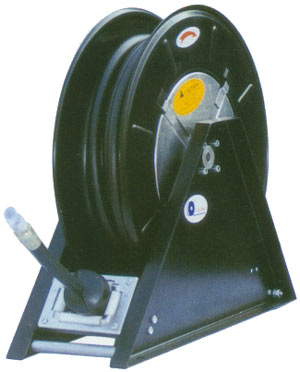

830 Series


Heavy-duty steel construction for industrial and automotive applications
Covered by corrosion resistant powder coating
Double supported 1-3/8 axle, full flow swivel joint
Multi-position release ratchet, spring fully enclosed and lubricated
Oil-lite self-lubricating bearing
Four direction non-snag rollers reduce hose wear
Stable and heavy-duty triangular base, floor mounted


Low Pressure Air / Water Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
L830103 3/8" 300/20 3/8" 33'/10 53*26*50 20/22 400
L830153 3/8" 300/20 3/8" 50'/15 53*26*50 21/23 400
L830104 1/2" 300/20 1/2" 33'/10 53*26*50 23/25 400
L830154 1/2" 300/20 1/2" 50'/15 53*26*50 25/27 400
Low pressure reels furnished standard with rubber hose. Maximum temperature 210oF(100℃)
Medium Pressure Water / Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
M830103 3/8" 2250/155 3/8" 33'/10 53*26*50 21/23 400
M830153 3/8" 2250/155 3/8" 50'/15 53*26*50 23/25 400
M830104 1/2" 2000/138 1/2" 33'/10 53*26*50 22/24 400
M830154 1/2" 2000/138 1/2" 50'/15 53*26*50 24/26 400
Medium pressure reels furnished standard with S.A.E.100R1 AT one wire braid hose. Maximum temperature 210oF(100℃)
High Pressure Grease / Hydraulic Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
H830102 1/4" 5000/345 1/4" 33'/10 53*26*50 21/23 400
H830152 1/4" 5000/345 1/4" 50'/15 53*26*50 23/25 400
H830103 3/8" 4000/276 3/8" 33'/10 53*26*50 22/24 400
H830153 3/8" 4000/276 3/8" 50'/15 53*26*50 24/26 400
High pressure reels furnished standard with S.A.E.100R2 AT two wire braid hose. Maximum temperature 210oF(100℃)
