Hose Reel

Spring Rewind Hose Reels

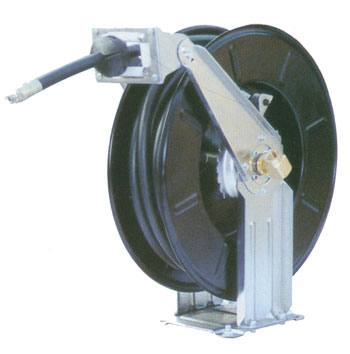

820 Series


Heavy-duty steel construction for industrial and automotive applications
Reel covered by corrosion resistant powder coating, two supporting arm and base galvanized
Double supported 1-3/8 axle, Full flow swivel joint
Multi-position release ratchet, spring fully enclosed and lubricated
Oil-lite self-lubricating bearing
Four direction non-snag rollers reduce hose wear
Wall, ceiling, or floor mounted


Low Pressure Air / Water Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
L820103 3/8" 300/20 3/8" 33'/10 50*22*52 19/21 450
L820153 3/8" 300/20 3/8" 50'/15 50*22*52 20/22 450
L820104 1/2" 300/20 1/2" 33'/10 50*22*52 22/24 450
L820154 1/2" 300/20 1/2" 50'/15 50*22*52 24/26 450
Low pressure reels furnished standard with rubber hose. Maximum temperature 210oF(100℃)
Medium Pressure Water / Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
M820103 3/8" 2250/155 3/8" 33'/10 50*24*52 20/22 450
M820153 3/8" 2250/155 3/8" 50'/15 50*24*52 22/24 450
M820104 1/2" 2000/138 1/2" 33'/10 50*24*52 22/24 450
M820154 1/2" 2000/138 1/2" 50'/15 50*24*52 25/27 450
Medium pressure reels furnished standard with S.A.E.100R1 AT one wire braid hose. Maximum temperature 210oF(100℃)
High Pressure Grease / Hydraulic Oil Reels
Item Inlet/Outlet (inch) Max Pressure (psi/bar) Hose Capacity/I.d.(inch) Hose Capacity/Length (ft/m) Packing Dimensions (cm) NW/GW (kgs) Loading Q'ty of 20'CY
H820102 1/4" 5000/345 1/4" 33'/10 50*24*52 20/22 450
H820152 1/4" 5000/345 1/4" 50'/15 50*24*52 22/24 450
H820103 3/8" 4000/276 3/8" 33'/10 50*24*52 22/24 450
H820153 3/8" 4000/276 3/8" 50'/15 50*24*52 25/27 450
High pressure reels furnished standard with S.A.E.100R2 AT two wire braid hose. Maximum temperature 210oF(100℃)
